In CatDV clip data is displayed in two contexts:

  1. Views – lists of clips presented as a table, a grid or set of film-strips.
  2. Detail Panels –  detailed information about a single clip displayed in a set of tabs.

It is possible to customise both views and panels using the web-based administration interface.

View Sets and Panel Sets

It is often useful to consider a set of panels or views as a single item. For example the set of panels that might be relevant to a single production group or the set of panels to display in the web client. For this reason all panels and views are groups into sets which are referred to as Panel Sets and View Sets.

Custom Panels and Views

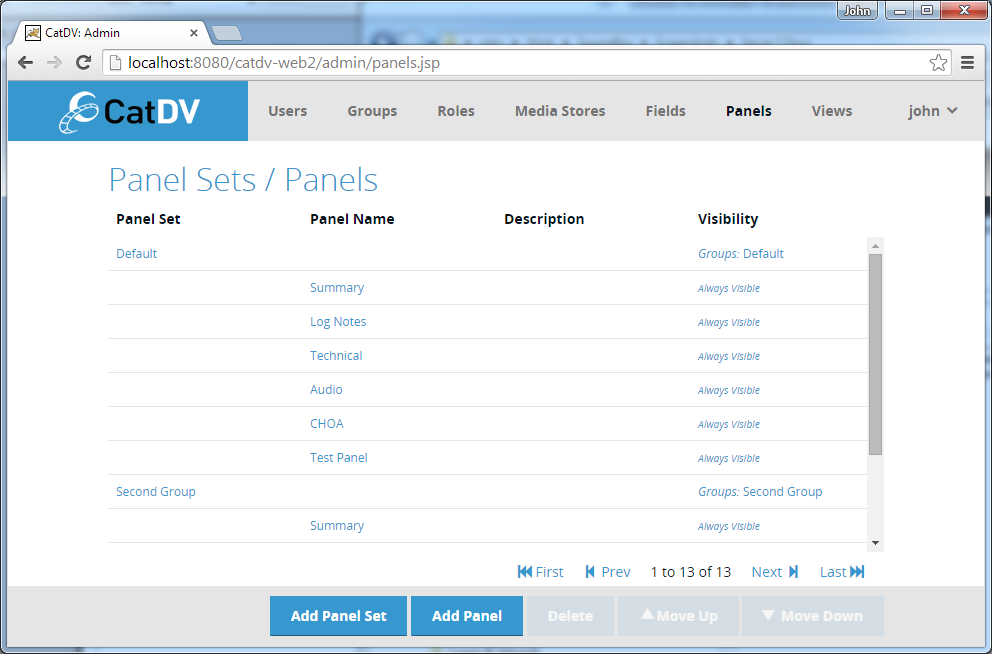

Due to the similarity in managing panels and views they will be treated together. Selecting either Panels or Views from the toolbar displays the Panels or Views list:

webadmin_panels



The panel/view list displays the following columns:

  • Panel/View Set – the set that contains the panels/views that appear in the proceeding rows. Click on the panel/view set name to edit it.
  • Panel/View Name – name of an individual panel or view. Click on this to edit the panel/view.
  • Description – longer description of the item.
  • Visibility – shows a summary of the visibility rules that apply to the set or individual panel or view. Rules defined at the set level determine whether the set as a whole is visible in a given situation. Only if the set as a whole is visible to the rules defined on individual item come into play.

Edit Panel

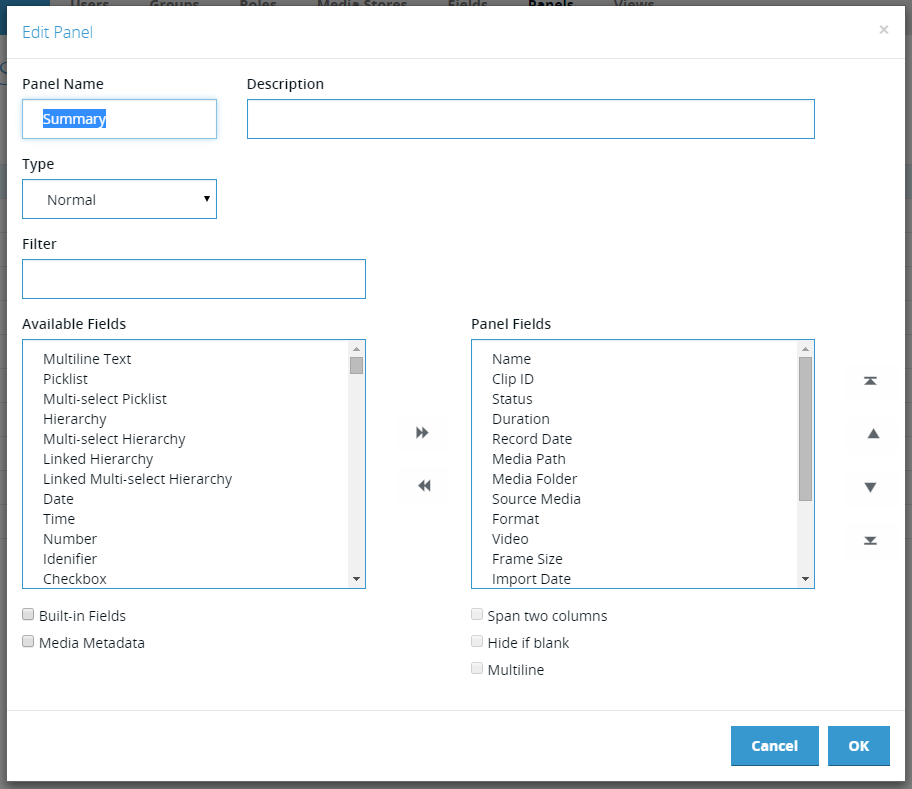

The Edit Panel dialog allows the user to create or edit clip detail panels:

webadmin_panel_edit



It has the following fields:

  • Panel Name – the name of the panel, which will be used as the tab title in the UI.
  • Description – longer description that specifies the purpose of the panel
  • Type – the type of tab to display:
    • Normal – normal detail panel containing editable fields
    • HTML Summary – a formatted read only view of the metadata
    • Built-in – a non-editable built-in panel. To make editable change type to one of the other two types.
  • Filter – filters the list of available fields for fields whose name contains the entered text
  • Available Fields – lists the available fields that can be added to the panel
  • Built-in Fields – if ticked includes built-in fields in the available fields list.
  • Media Metadata – if ticked includes Source Media metadata fields in the available fields list. Note: Source Media metadata fields includes fields extracted from media files and can be very long
  • Panel Fields – fields that should appear in this panel, in the order that they should appear. User the left/right arrows between the two lists to add/remove items or simply drag and drop items from one list to the other. Use the up/down arrows to the right of the list to change the order of the fields.
  • Span two columns – if ticked the selected panel field should be displayed across two column in client that support this feature
  • Hide if blank – if ticked the selected panel should should not be displayed if there is no value stored against it
  • Multi-line – if ticked the field should be displayed across multiple rows in the UI.



Edit View

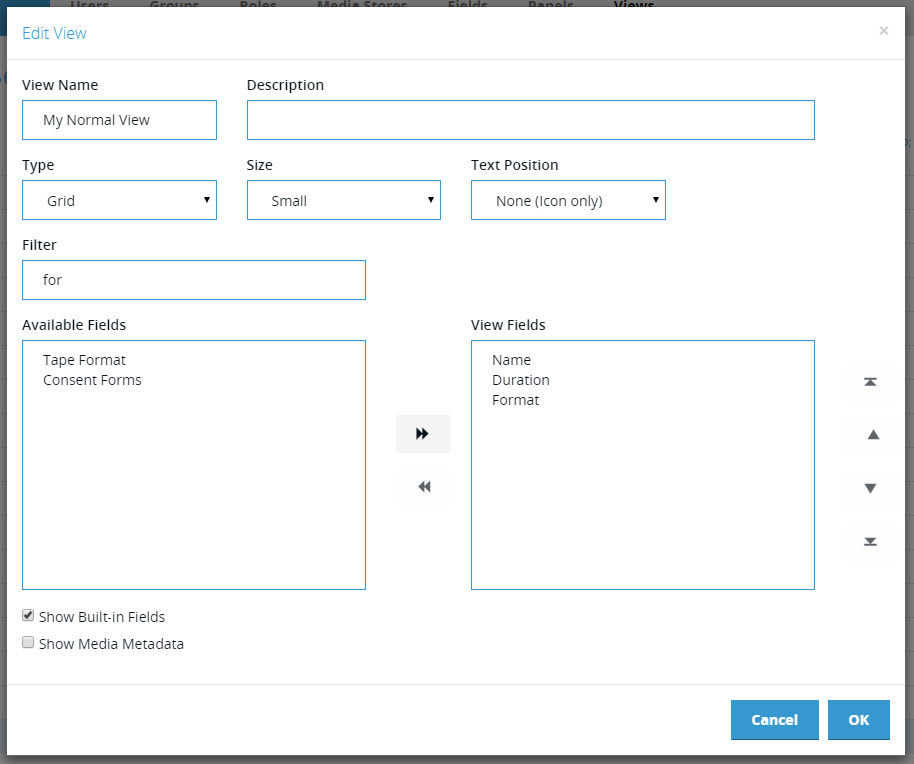

The Edit View dialog allows the user to create or edit clip list views:

webadmin_view_edit



It has the following fields:

  • View Name – the name of the view, which will be used as the menu item title in the UI.
  • Description – longer description that specifies the purpose of the view
  • Type – the type of tab to display:
    • List– tabular clip view with rows and columns like a spreadsheet
    • Grid – a grid of clips showing image thumbnails and some text
    • Filmstrip – a list of film strips each of which shows a set of thumbnails for the clip.
    • Built-in – a non-editable built-in view. To make editable change type to one of the other types.
  • Options – options that apply the selected view type.
  • Filter – filters the list of available fields for fields whose name contains the entered text
  • Available Fields – lists the available fields that can be added to the view.
  • Built-in Fields – if ticked includes built-in fields in the available fields list.
  • Media Metadata – if ticked includes Source Media metadata fields in the available fields list. Note: Source Media metadata fields includes fields extracted from media files and can be very long
  • View Fields – fields that should appear in this view, in the order that they should appear. User the left/right arrows between the two lists to add/remove items or simply drag and drop items from one list to the other. Use the up/down arrows to the right of the list to change the order of the fields.

Visibility Rules

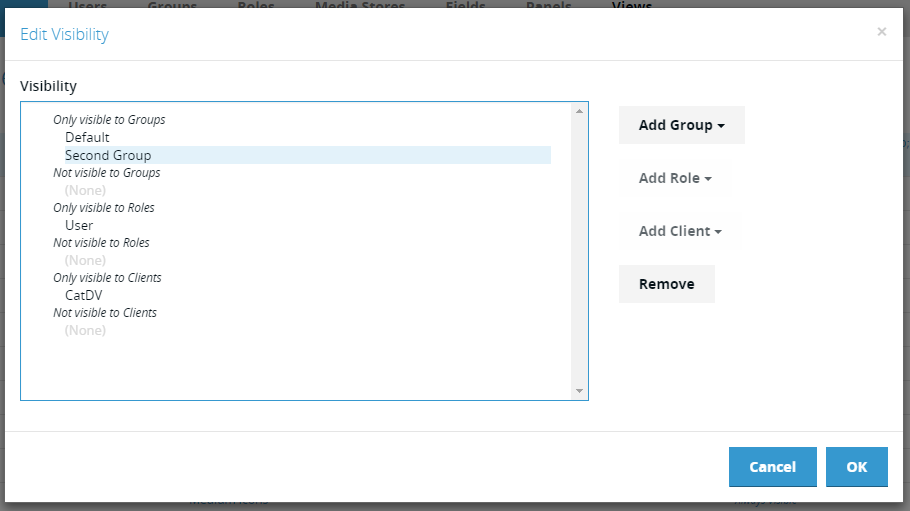

The Edit Visibility dialog allows the user to control under what conditions different panels and views will be visible:
webadmin_visibility

The dialog displays a list of the current visibility rules divided in three sets of two groups:

  1. Only/Not visible to Groups – the view or panel will (only be visible/not be visible) when viewing a clip in one of the listed production groups, or when they are logged in to one of those groups (CatDV desktop client only)
  2. Only/Not visible to Roles –  the view or panel will (only be visible/not be visible)  to users with one of the listed groups
  3. Only/Not visible to Clients –  the view or panel will (only be visible/not be visible) when viewed using one of the listed clients.

The top to bottom view is crucial to understanding how visibility rules work.

It looks at the top Panel Set first and if the visibility rules apply for the current user/group then is uses that Panel Set. No other Panel Sets are considered at all. Only one Panel Set is EVER used at one time. It never merges panel sets. This behaviour models the old pre-Server 7 behaviour.

If you do admin with the desktop client you will end up with one Panel Set per-group, no sharing.

If you would like the same panels across all the groups then you should have one Panel Set, with ‘always visible’ set, and then set the visibility on individual panels within the Panel Set.

The Set Group menu will never affect what assets you see (which is down to permissions) nor what panels you see because panels are controlled by the group of the asset and not the user. The current group will, however, affect the views and the workspace you see.

However, you can control panel visibility based on the user’s ROLE, if you want an ‘Admin-only’ panel for example. But the user’s role is not affected by their current group.
