Default timecode format
Select your desired frame rate for any timecode or sequences you create within CatDV, NTSC (30fps NDF) PAL (25fps) are available – This does not
change or convert the frame rate of clips imported into CatDV.
Check the Leading zero button will display all timecode hours between 0 -9 with a zero in front e.g 9:18:20:12 will be displayed as 09:18:20:12
Date display format
There is a choice of display options available to select how you wish
to display the date –
Time format
Select how time is displayed 12hr time format 09.00pm or 24hr format 21:00hrs
Menus
CatDV gives you the option to restrict certain menu items. It’s a useful way to keep the menu items small allowing easy location of menu items.
It also allows restricts the more advanced features within CatDV which you may want to hide from users
Simple Menu Advanced Menu
In advanced menu mode the Media menu allows for additional options –
The ability to
Present Movie
Run Slide Show
Manage Proxy Movies
Build Thumbnails

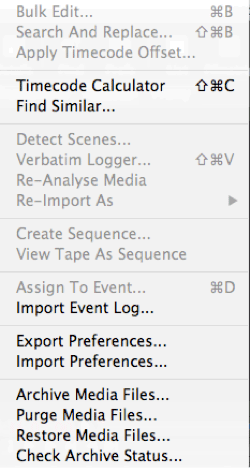

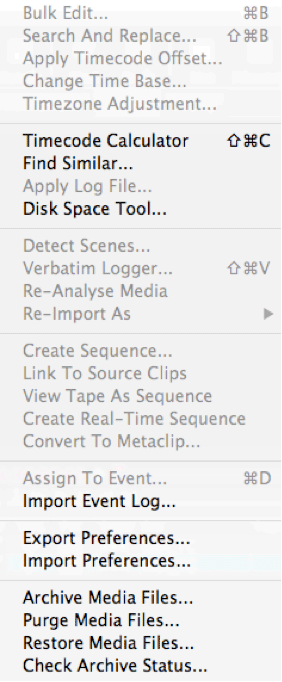

Additional options are available in the Tools menu when Advanced is selected
Subclip Naming
When you create a subclip, CatDV will automatically generate a name for it. This option allows you to specify what the default naming should be based on.
The default is ShortClipName.1
For example
You have a clip called “wide shot” amnd have chosen to select a portion of this as a subclip. CatDV will name the new subclip as“wide shot.1”
You can also rename the subclip when it is created.
UI Language
System Default will display the language on your chosen system preferences or you can force English by clicking
English (override)
